Home on sale center opening curtain
Product Details

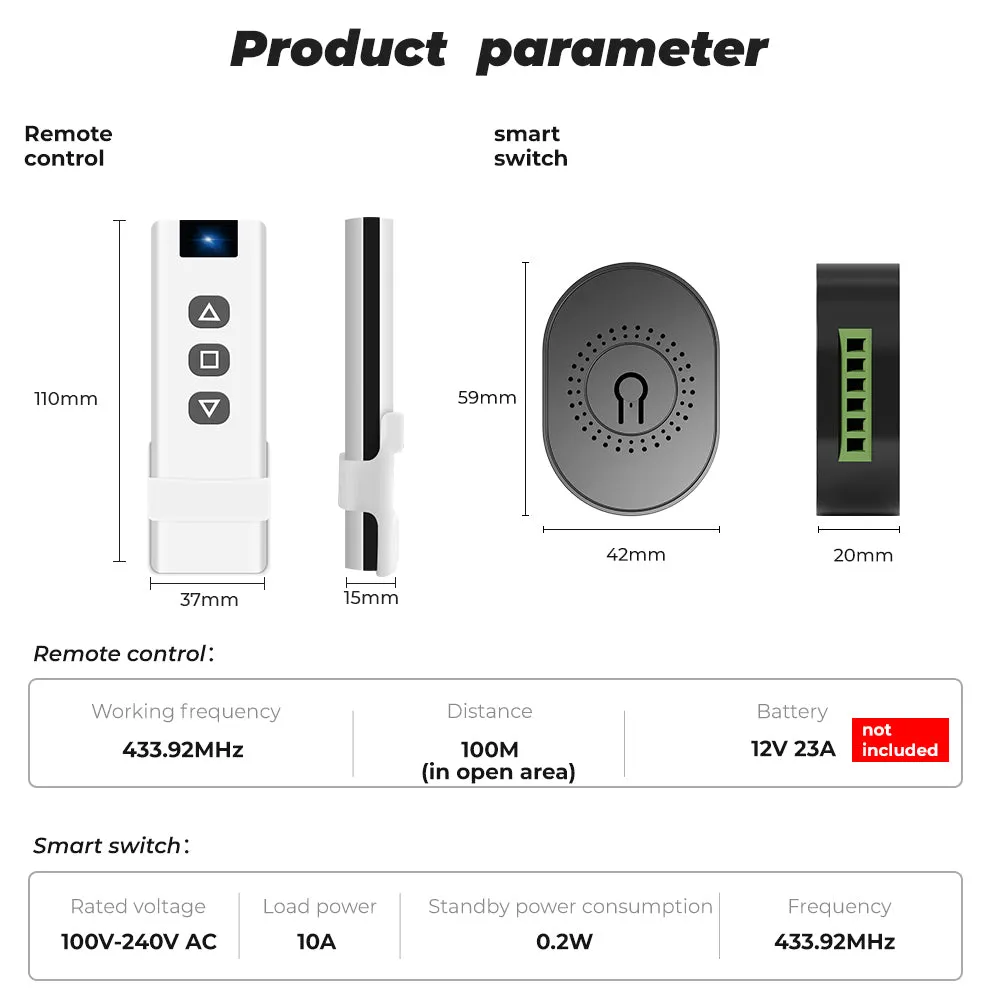

Specification:

  • Input voltage: 100-240V 50/60Hz
  • Power load: 500W (maximum)
  • Maximum current: 10A
  • WiFi standard: 2.4GHz 802.11 b/g/n
  • Working frequency: 433.92MHZ
  • Working temperature: -10°C ~ 40°C
  • Distance: 100M (open distance)

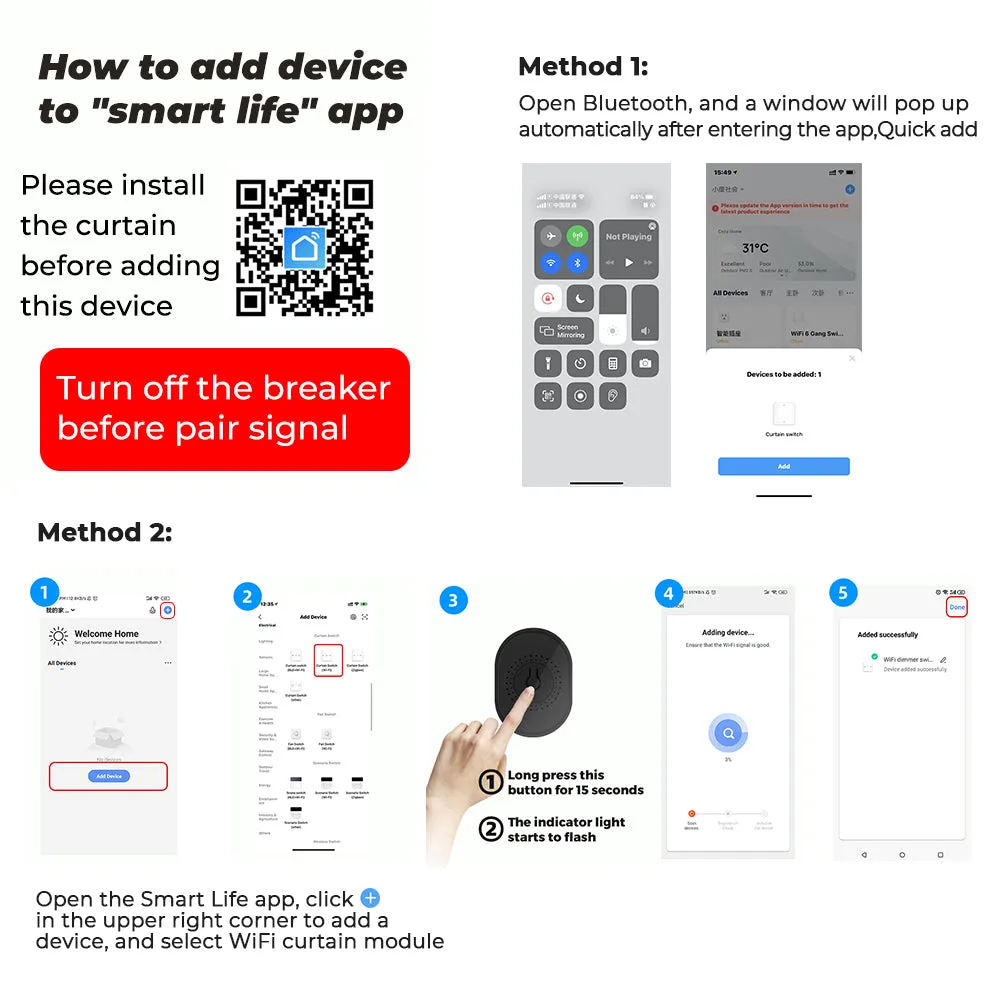

  • App Name: Tuya Smart / Smart Life
  • Size: 59*42*20mm

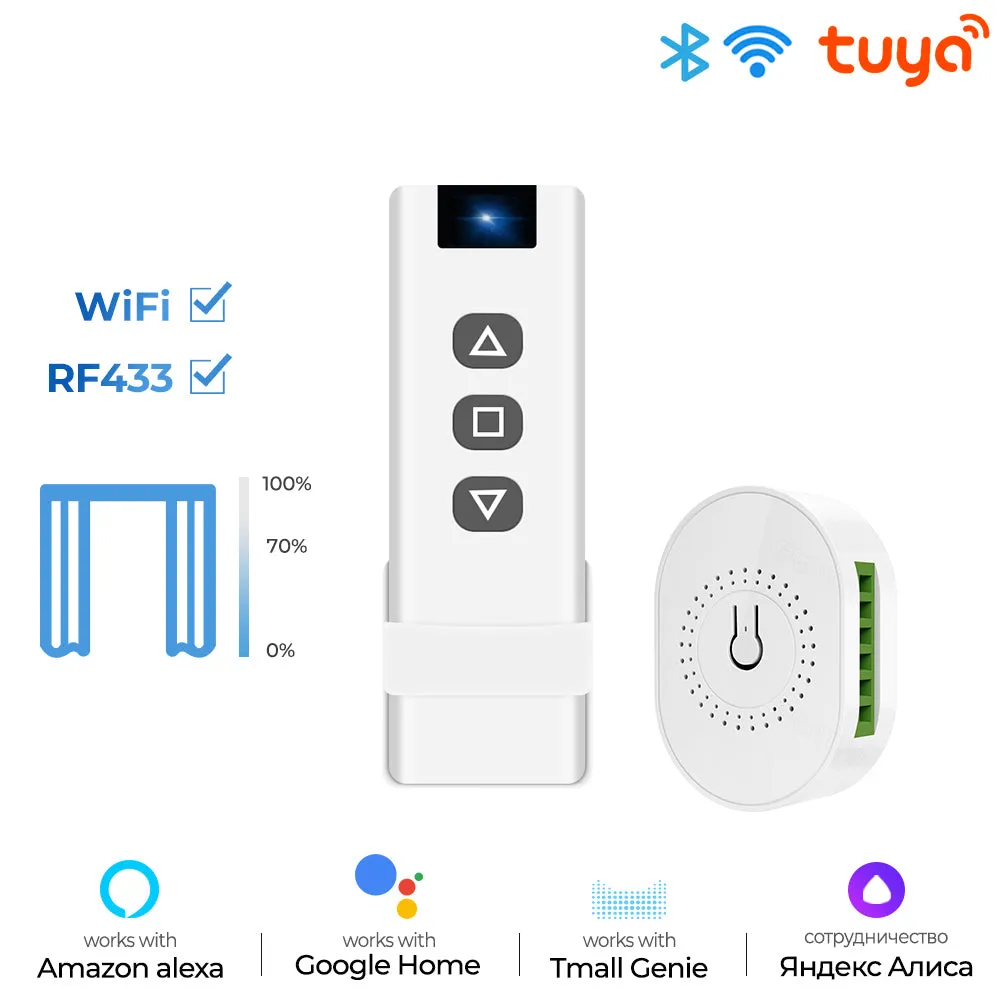

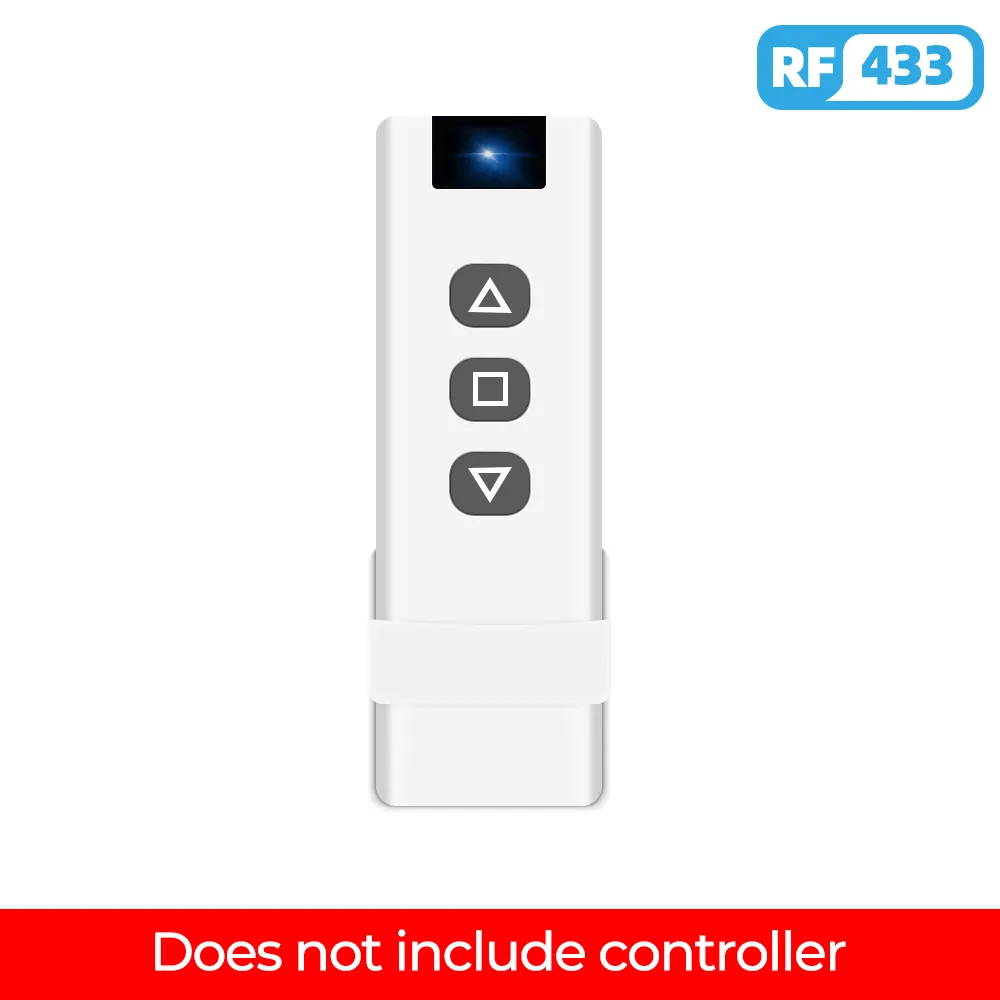

Curtain Remote Control Parameters:

  • Working frequency: 433.92MHZ
  • Battery: 1*12V 23A battery (battery not included)
  • Size: 110*37*15(mm)

Features:

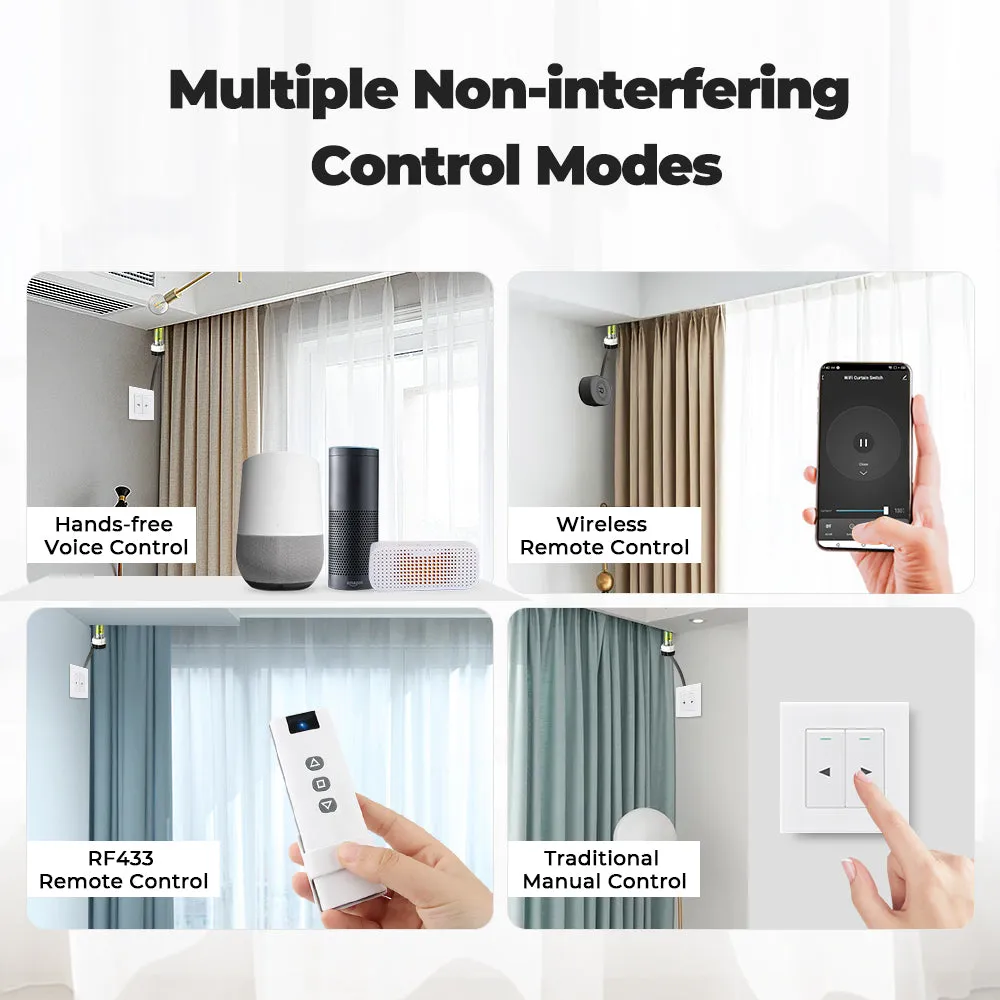

  1. 【WIFI RF433 remote control】It can be controlled by Tuya APP and voice control, and the built-in RF433 frequency of the curtain switch module can use the RF433 remote control to realize the opening/closing and pausing of the curtain. The working distance of the remote control is about 50 meters, and the actual working distance will be affected by obstacles (the RF433 remote control needs to be purchased separately).

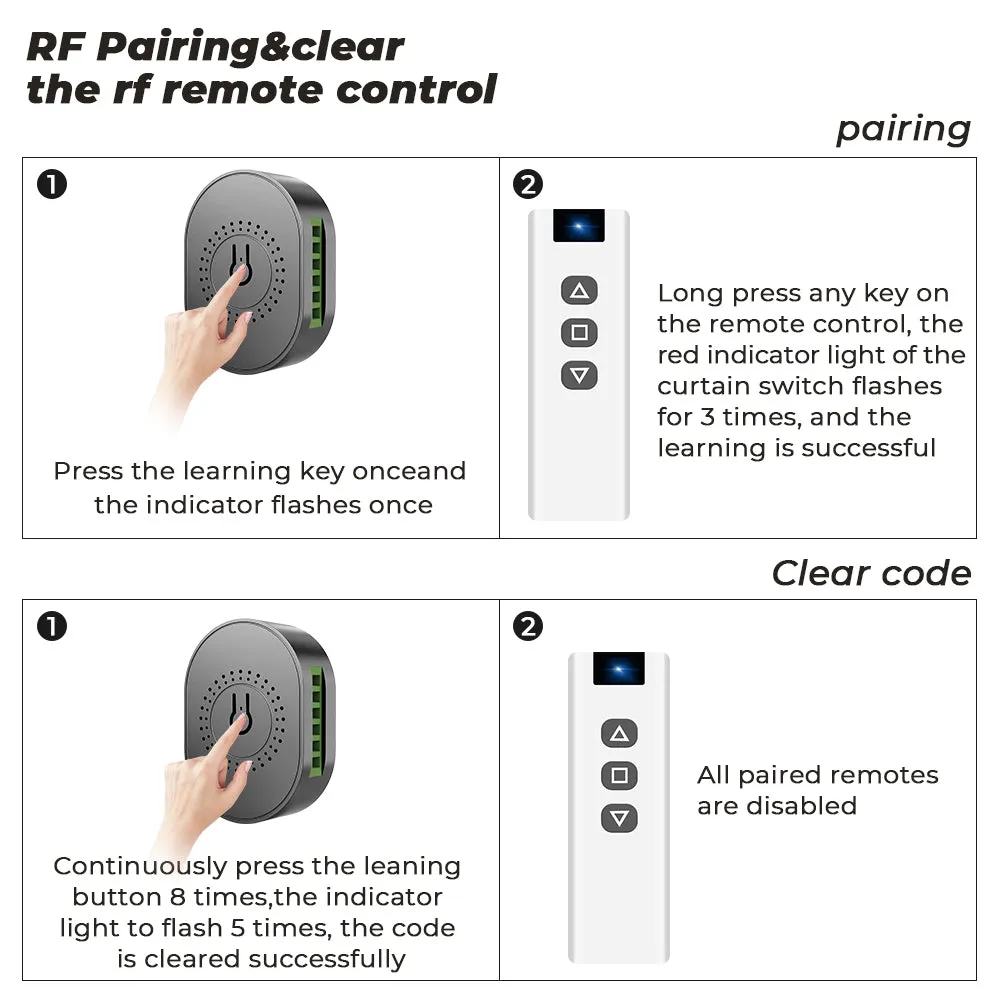

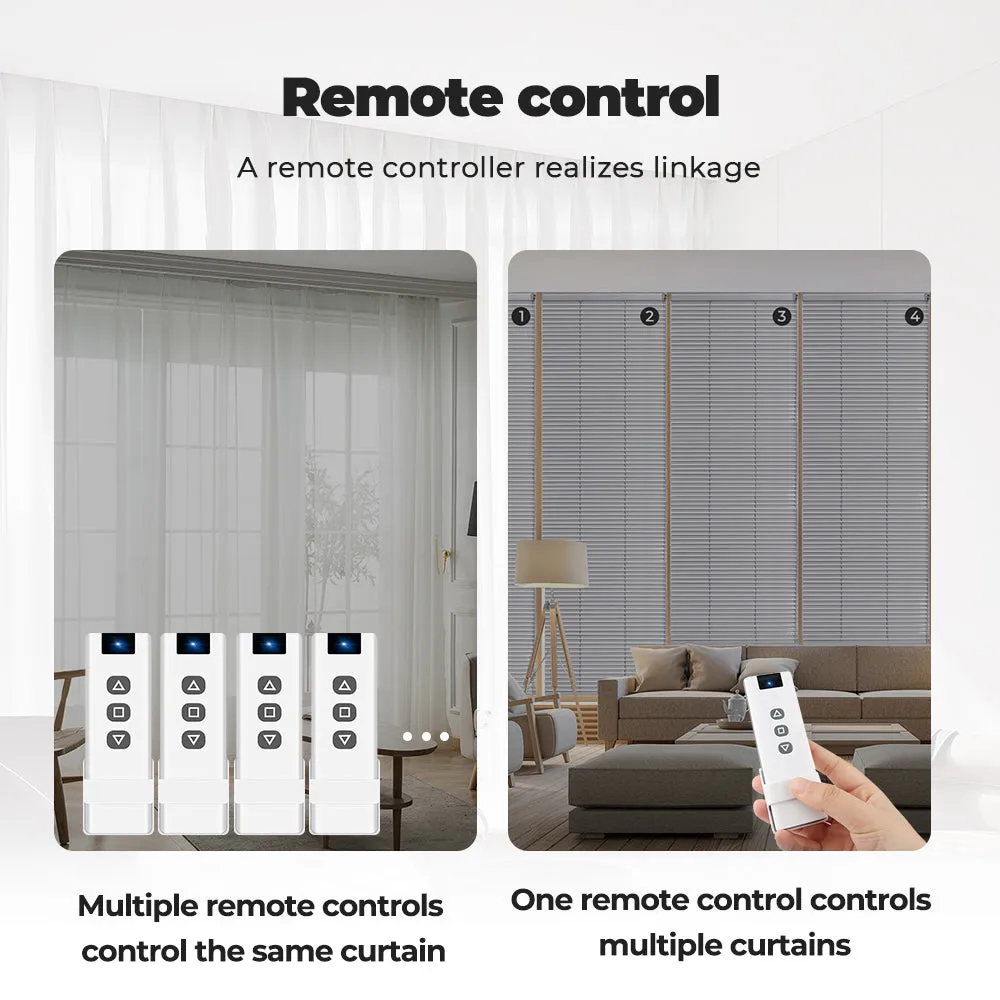

  2. 【Multiple Combinations】Through the pairing signal, multiple remotes can control one curtain module, or one remote control can control multiple curtain modules
  3. 【Wifi Bluetooth Dual Mode】The speed of connecting to the network is faster and more stable.

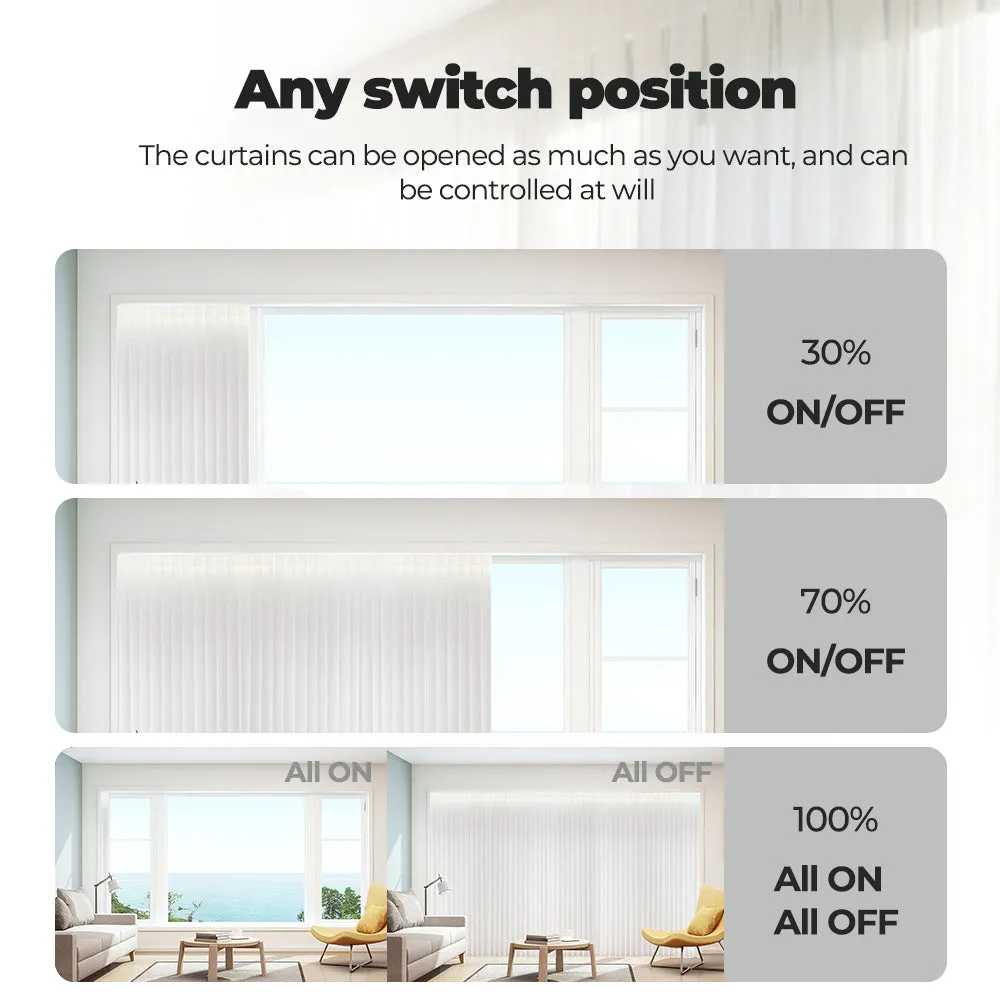

  4. 【Curtain supports percentage control and precise calibration function】The opening of the curtain can be defined by percentage bar and voice control. You can also set the motor roll direction, as well as accurate calibration.
  5. 【Voice Control】Compatible with Amazon Alexa Echo and Google Home, control the curtains to open/close with simple voice commands.
  6. Linkage functionIt can be linked with other switch modules, sensors and electrical appliances in the home to create different scenes, such as sleep mode, work mode, dinner mode, home mode, etc.

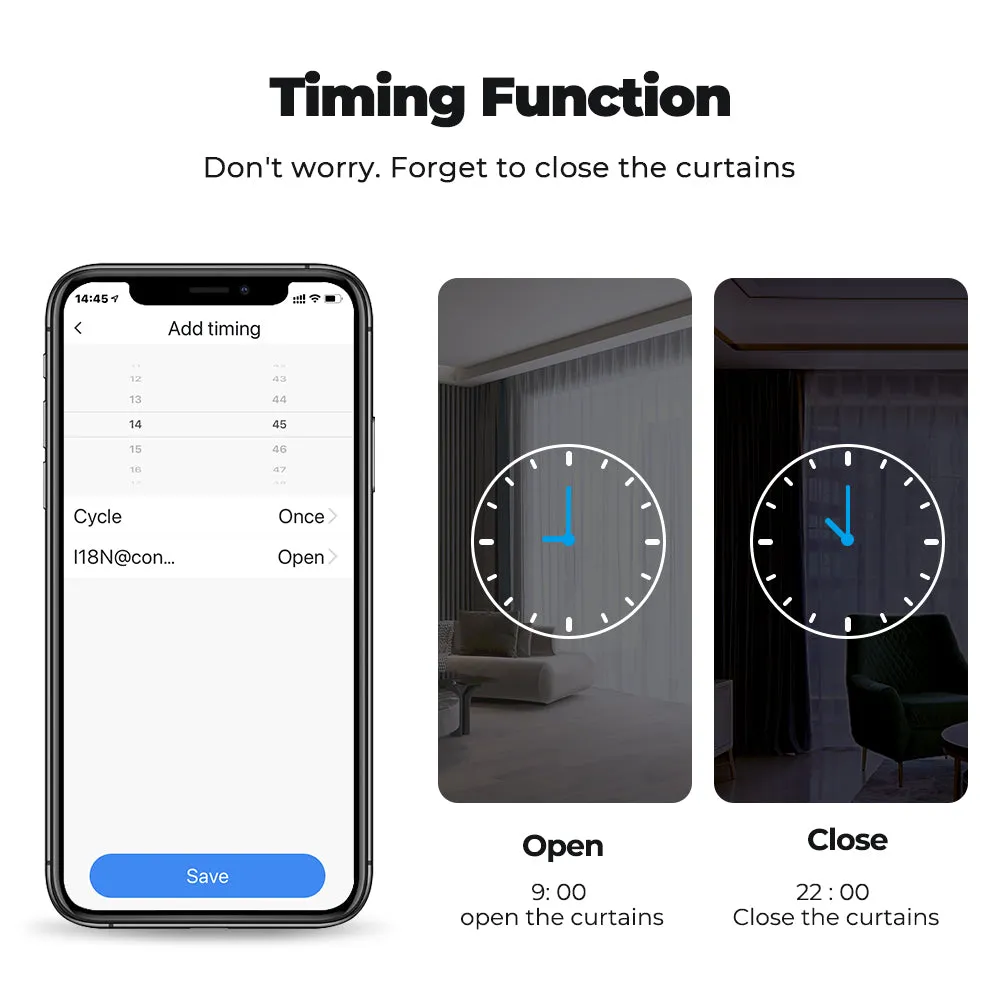

  7. 【Countdown and Timing Function】Can perform countdown or timing operation on the curtain switch, maximizing intelligence and DIY your daily life.

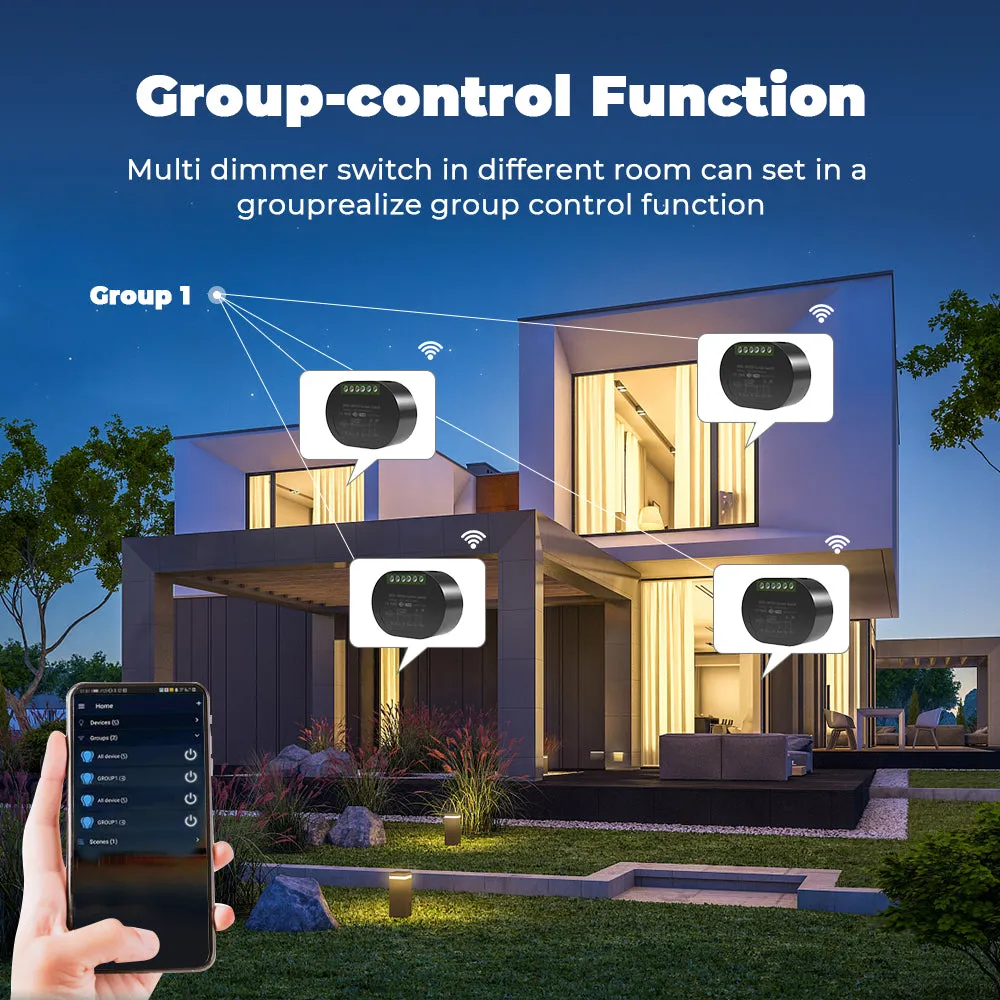

  8. 【Group function】Multiple curtain switches in different rooms can be set in groups to realize the group control function.
  9. Family Sharing FunctionYou can share the curtain switch with your family on the APP to build a smart home together.

Notice:

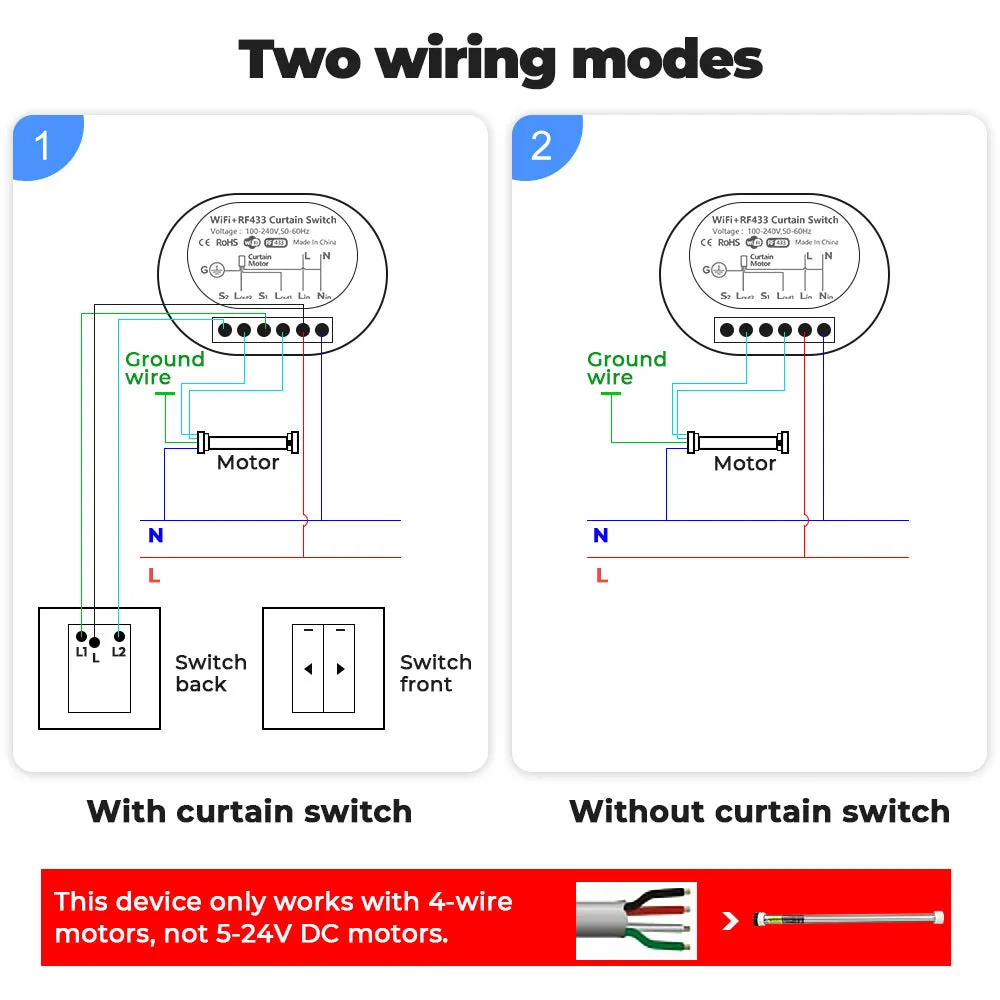

  1. This switch module is only suitable for 4-wire motors. Please check if your motor has 4 wires. (motor not included, needs to be purchased separately)
  2. The switch is connected to the electric tubular motor, and the motor must be connected to the neutral line. The switch is only suitable for 100-240V AC motors (not including the motor, which needs to be purchased separately), not for 5-24V DC motors.

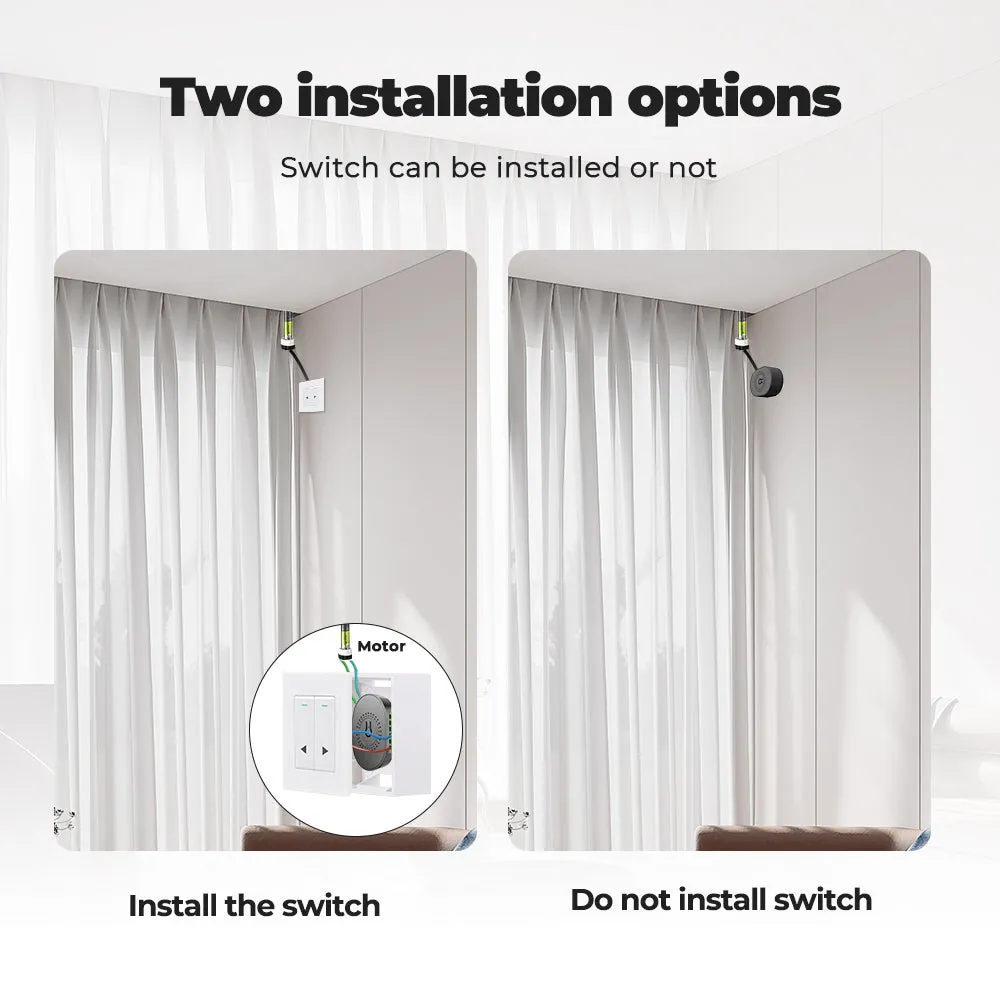

  3. The neutral line of the motor needs to be installed with a switch, otherwise it will not work.
  4. To protect the motor, please keep the wall manual switch at the "STOP" position before using the App to control the blinds.
  5. Heavy metal shutters with limited materials are not suitable for calibration.

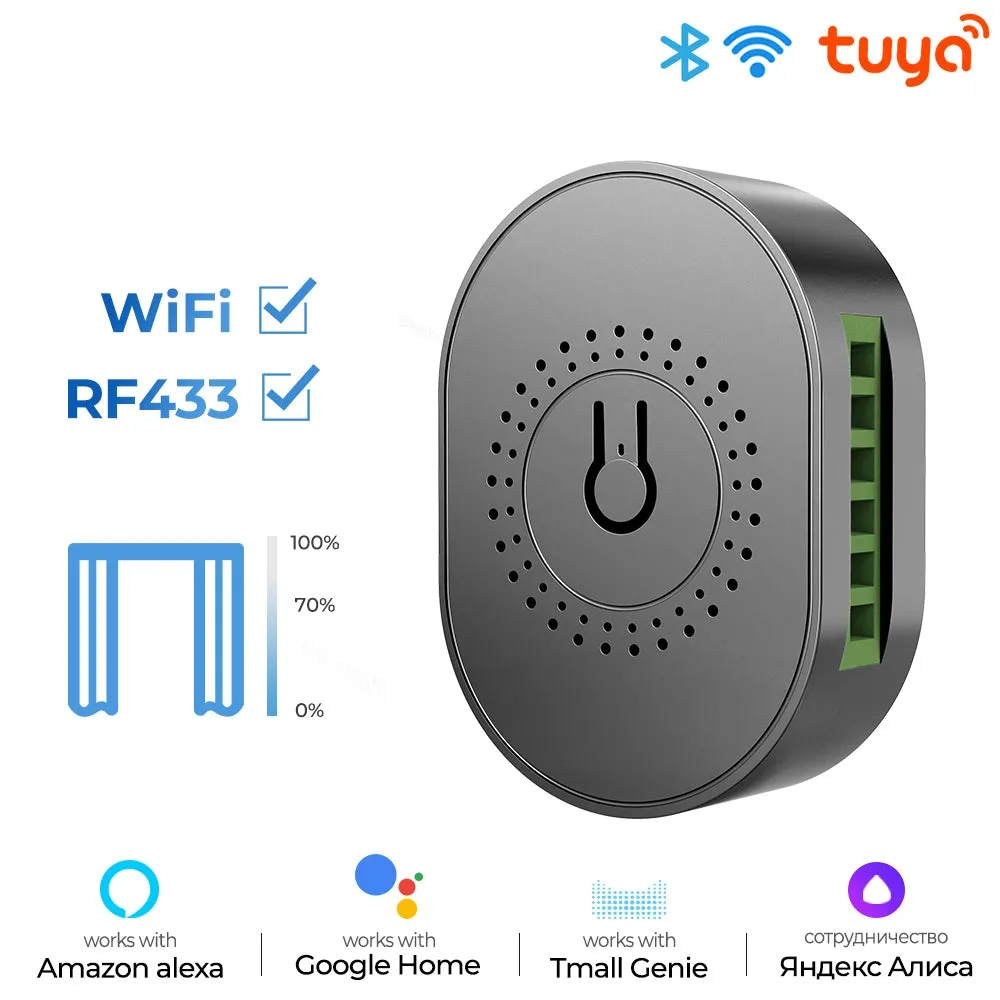

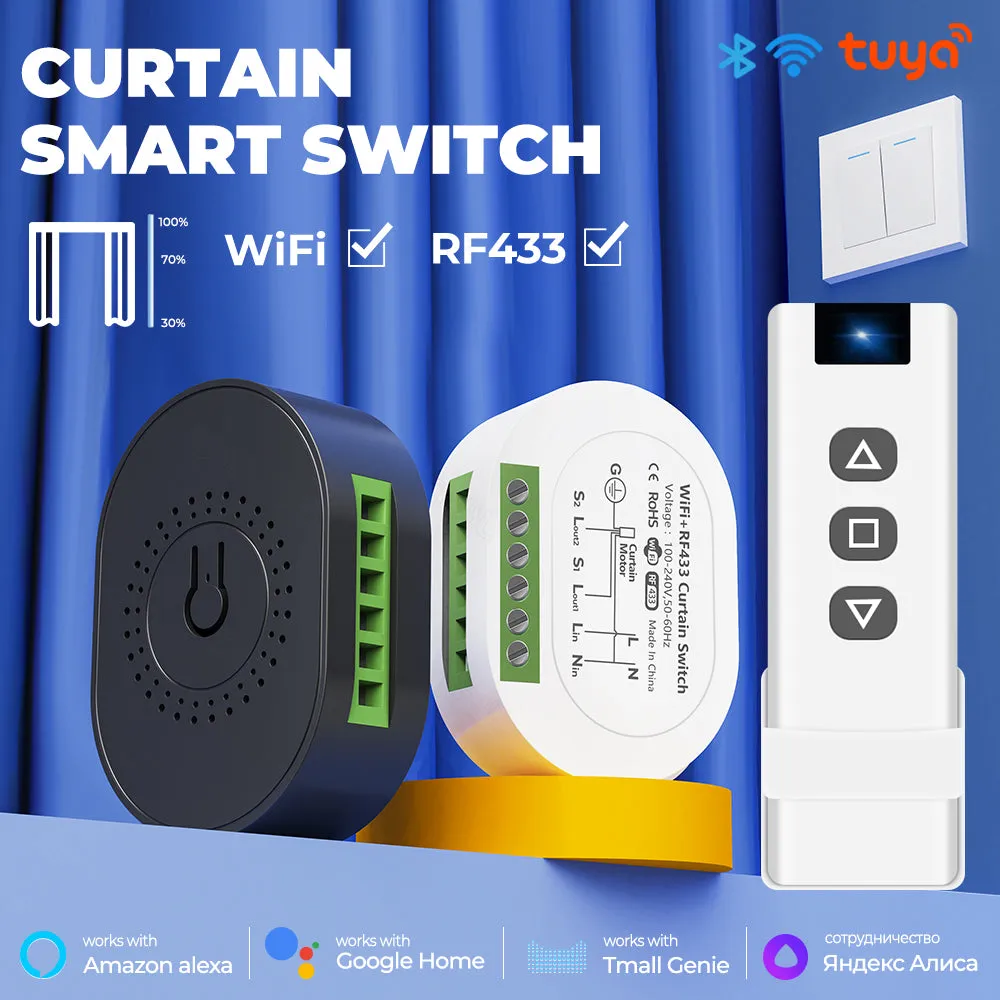

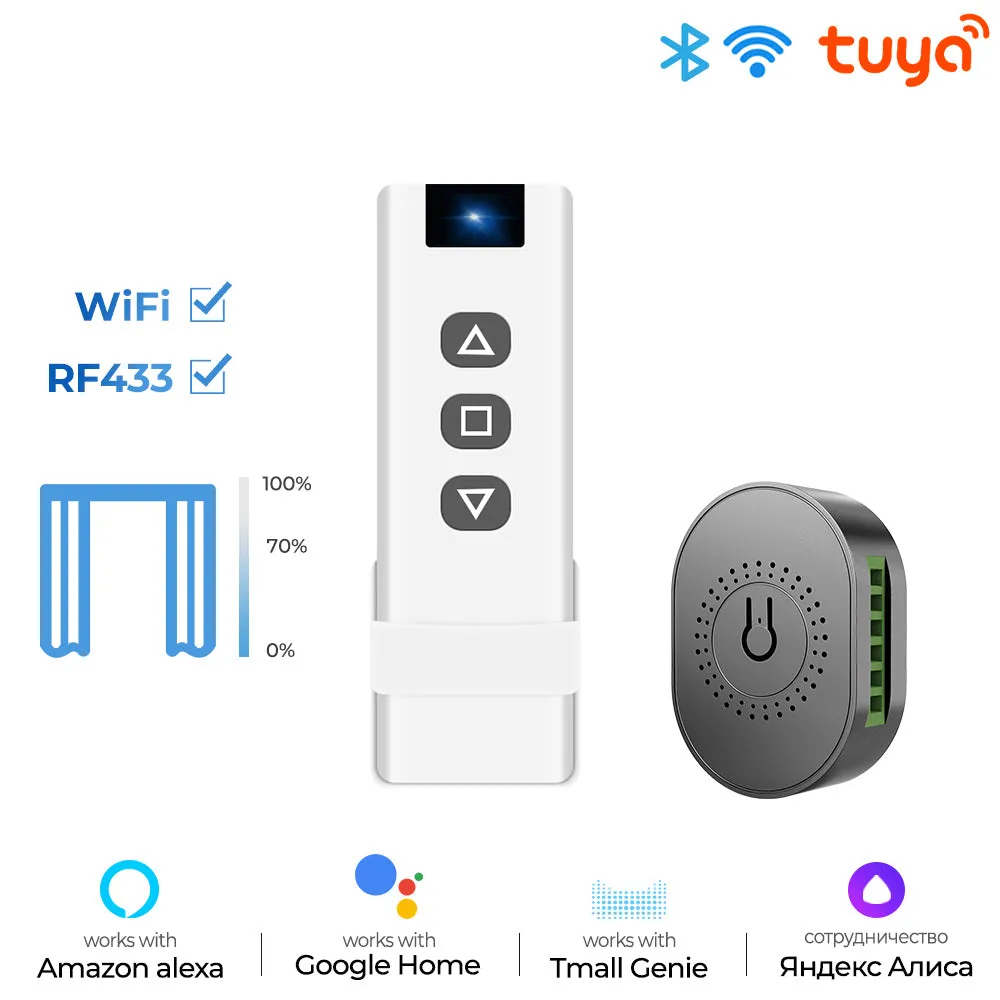

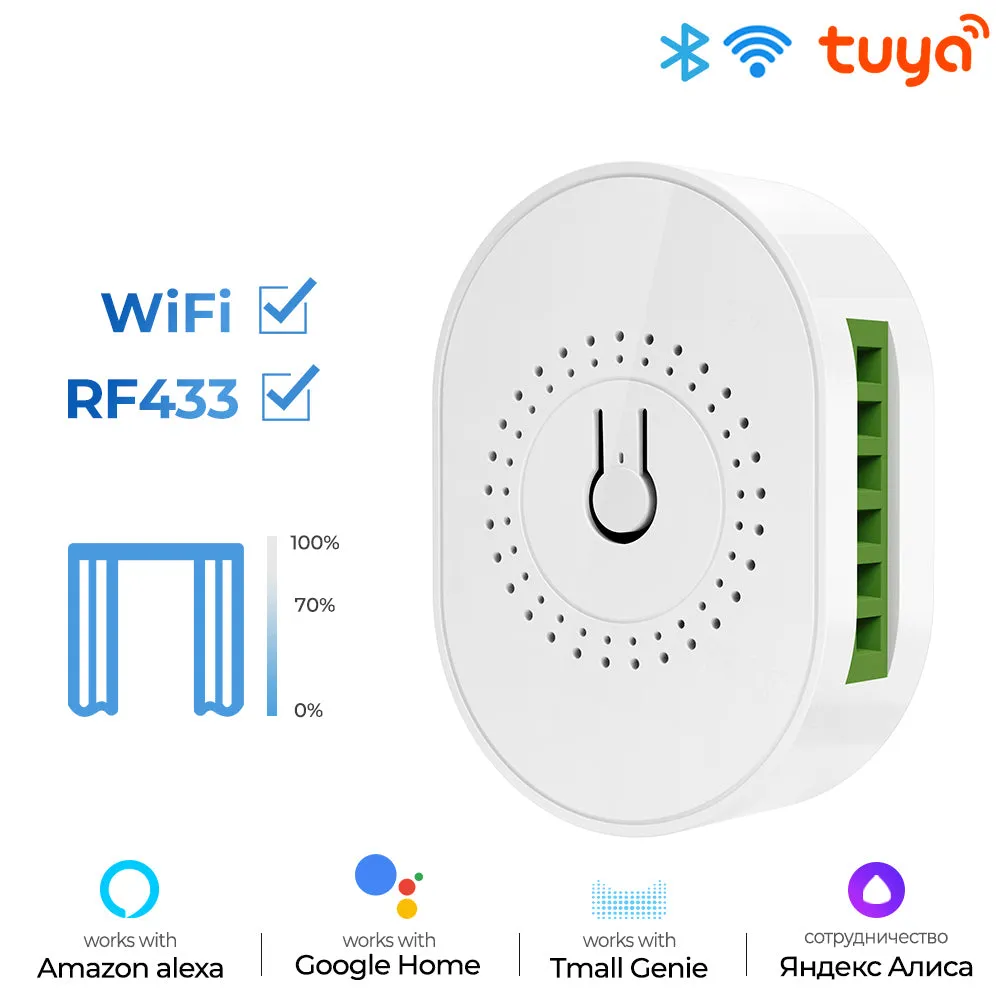

SMATRUL WiFi Curtain Switch, Smart Motorized Roller Blinds Shutter Relay Module with Timer, 0-100% Adjustable Range

  • BlackModule
  • WhiteModule
  • OnlyRemote
  • 1BlackModule1Remote
  • 1WhiteModule1Remote

$ 16.99

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable
