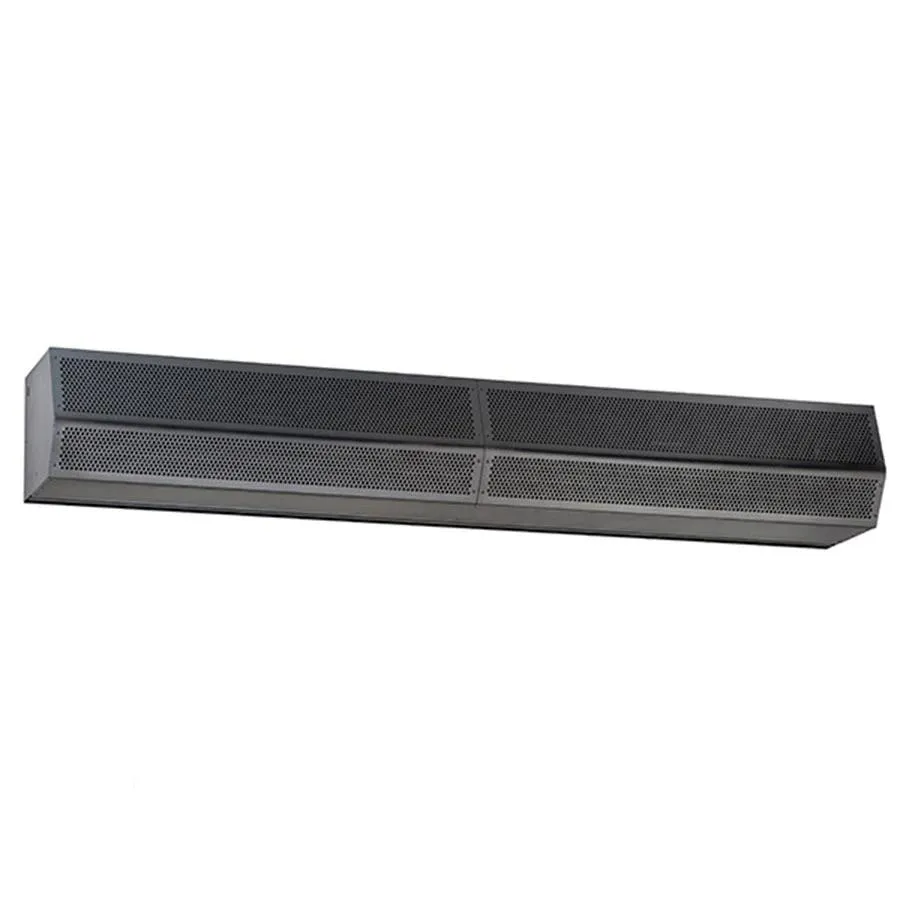

Mars air curtains are designed to produce a quiet yet steady stream of air that will guard your establishment from insects, fumes, dust, odors and other contaminants. These are mainly used over drive-thru windows, service doors and/or other entrances.

This commercial grade air curtain produces a greater velocity of air flow when compared to other air curtains and can help eliminate an above average insect condition and is ETL listed for indoor or outdoor installations.

STANDARD FEATURES

• Shipped fully-assembled and ready to install
• Warranty backed with Nationwide Service Centers
• ETL Listed
• Adjustable air directional vanes adding flexibility
• These units put out 2000 LFM on high speed

ELECTRICAL INFORMATION

• Volts – 115
• Amps – 5.1
• Circuit Breaker – 15amp
• Single Phase

California Regulations

• If the California location has air curtain then the service opening cannot exceed 432 sq in.
• If the California location is not adding an air curtain, then service opening can not exceed 216 sq in.
• The square inch service opening on a SC-4030 is 587.25” and the square inch service opening of a SC-3030 is 442.50"
• We recommend our Restrictor Glass Plate and Air Curtain Micro-Switch Kit for all California Customers.
• Restrictor Glass Plates can be added in field if necessary.
